D16 Modular Flexible Welding Platform

The D16 Modular Flexible Welding Platform adopts the internationally popular D16 standard hole system, serving as a compact, reconfigurable workstation for welding, assembly, fitting and prototype inspection. Differing from larger D28 series platforms designed for heavy workpieces, the D16 specification focuses on light and medium-duty metal fabrication scenarios. It effectively addresses the pain points of traditional production such as cumbersome jig making, low positioning repeatability, long setup time and poor adaptability to diversified orders. This platform is widely applied in hardware processing, small frame assembly, vehicle accessories, mechanical prototypes, stainless steel fabrication and small-batch customized metalworking workshops.

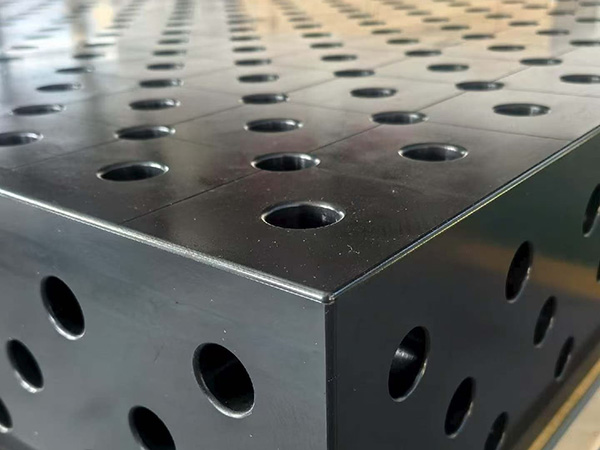

The main body of the D16 modular flexible welding platform is fabricated from high-strength alloy steel plates. After cutting and forming, the whole structure undergoes integral stress relief annealing to eliminate internal residual stress. This critical manufacturing step prevents permanent flatness deviation caused by long-term welding heat impact, frequent clamping operations and continuous workpiece loading. The tabletop is precisely milled to guarantee excellent flatness. Uniformly arranged D16 standard positioning holes are processed under strict tolerance requirements, forming a complete universal reference grid. All supporting fixtures including positioning pins, adjustable supports, angle brackets and quick clamps are fully compatible with the D16 hole standard, enabling fast mounting, free relocation and reliable locking. The tabletop surface is treated with anti-spatter and wear-resistant coating, which repels welding slag, slows oxidation and simplifies daily cleaning in busy workshop environments.

Modular flexibility based on the D16 hole network is the core advantage of this platform. All auxiliary components follow unified standards and can be freely combined and adjusted according to workpiece outlines and processing demands. Operators can quickly build dedicated clamping layouts for sheet metal, thin-walled profiles, tubular components and small three-dimensional assemblies. There is no need to manufacture exclusive fixed jigs for each new product. After one-time clamping, multi-angle welding and assembly can be completed without repeated disassembly, turnover and repositioning. The whole process greatly cuts auxiliary preparation time and reduces dimensional errors generated by manual marking and repeated positioning.

In practical workshop operation, the D16 Modular Flexible Welding Platform delivers obvious improvements in production efficiency and product consistency. Stable clamping effectively restrains thermal displacement during welding, controls welding deformation and reduces assembly gaps between matched parts. Its compact and open structural design avoids operation blind zones, facilitating full penetration welding, slag removal and post-weld dimension inspection. The platform performs steadily for prototype trial production, small-batch customization and medium-volume continuous manufacturing, maintaining reliable positioning accuracy for every batch of finished products.

From the perspective of long-term workshop cost management, the D16 platform brings considerable economic value. One set of platform together with universal D16 accessories can replace a large number of single-purpose custom jigs, lowering fixture manufacturing expenses and saving storage space. Standardized positioning workflows reduce dependence on experienced welders and cut the rate of defective products resulting from human errors. With the manufacturing industry developing toward flexibility and lean production, the D16 Modular Flexible Welding Platform becomes an ideal precision tooling choice for light-to-medium metal fabricators. It helps enterprises streamline production procedures, stabilize assembly accuracy and improve overall workshop operational efficiency.
