Multi-hole Positioning Welding Table

The Multi-hole Positioning Welding Table is a specialized processing workstation built around a standardized grid hole system, serving as a reliable positioning foundation for welding, assembly, fitting and dimension inspection. Distinct from ordinary flat welding benches lacking accurate reference benchmarks, this table relies on evenly distributed precision holes to realize rapid fixture layout and repeatable positioning. It efficiently solves common manufacturing troubles such as tedious manual marking, unstable workpiece positioning, poor product consistency and long fixture setup time. It is widely adopted in steel structure processing, mechanical frame fabrication, automotive parts production, pipeline assembly and customized metalworking workshops.

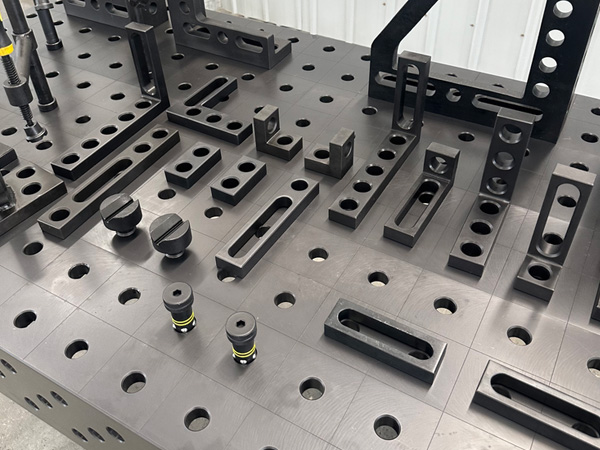

The main body of the multi-hole positioning welding table adopts thick high-strength alloy steel. After integral forming, the workpiece undergoes complete stress relief annealing to eliminate internal stress generated by cutting and forging. This essential process prevents permanent warping and surface distortion caused by long-term welding high temperature, mechanical impact and heavy workpiece loading. The tabletop is processed by high-precision overall milling to ensure excellent flatness. Uniformly arranged positioning holes are machined with strict dimensional tolerances, forming a universal positioning reference network. Various supporting accessories including positioning pins, support blocks, angle brackets and quick clamps can be locked at any hole position freely. The tabletop surface is treated with high-temperature resistant anti-spatter coating, which prevents welding slag adhesion, resists abrasion and corrosion, and reduces daily maintenance workload in harsh workshop environments.

The multi-hole grid positioning system is the core highlight of this welding table. Dense standard holes provide countless adjustable mounting points, enabling operators to flexibly build clamping schemes according to the outline and size of different workpieces. Whether processing flat plates, tubular profiles, frame assemblies or irregular three-dimensional components, rapid positioning and firm fixation can be realized without repeated scribing and lofting. There is no need to manufacture dedicated fixed jigs for individual products. Workpieces can stay clamped for multi-angle welding and assembly, avoiding repeated disassembly, flipping and repositioning, which greatly cuts auxiliary operation time and lowers dimensional errors arising from manual positioning deviation.

In practical production applications, the multi-hole positioning welding table significantly improves processing quality and operational efficiency. Reliable clamping limits thermal displacement during welding, effectively controls welding deformation and reduces assembly gaps between components. The open table structure reduces operation blind areas, convenient for welders to achieve full penetration, clean welding slag and conduct post-weld inspection and trimming. The workstation performs stably both for small-batch customized processing and continuous mass production, guaranteeing consistent dimensional accuracy among different batches of products.

From the perspective of enterprise operation cost optimization, the multi-hole positioning welding table delivers prominent long-term value. One table matched with general accessories can replace a large number of single-purpose custom jigs, saving fixture manufacturing costs and relieving workshop storage pressure. Standardized positioning operations reduce dependence on experienced senior welders and cut the defective rate caused by human errors. With the manufacturing industry continuously pursuing precision, efficiency and lean production, the multi-hole positioning welding table has become favored precision tooling for modern welding workshops, helping manufacturers optimize production processes, stabilize product quality and boost overall production capacity.
